QImage Class Reference

 #include <QImage>

 QImage image(3, 3, QImage::Format_RGB32);
 QRgb value;

 value = qRgb(189, 149, 39); // 0xffbd9527
 image.setPixel(1, 1, value);

 value = qRgb(122, 163, 39); // 0xff7aa327
 image.setPixel(0, 1, value);
 image.setPixel(1, 0, value);

 value = qRgb(237, 187, 51); // 0xffedba31
 image.setPixel(2, 1, value);

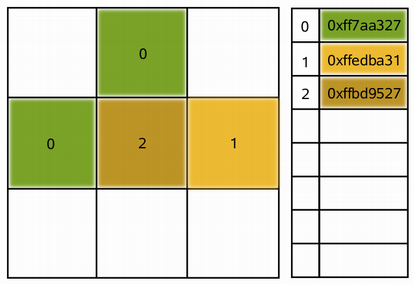

 QImage image(3, 3, QImage::Format_Indexed8);
 QRgb value;

 value = qRgb(122, 163, 39); // 0xff7aa327
 image.setColor(0, value);

 value = qRgb(237, 187, 51); // 0xffedba31
 image.setColor(1, value);

 value = qRgb(189, 149, 39); // 0xffbd9527
 image.setColor(2, value);

 image.setPixel(0, 1, 0);
 image.setPixel(1, 0, 0);
 image.setPixel(1, 1, 2);
 image.setPixel(2, 1, 1);

Member Function Documentation

QImage::QImage ()

Constructs a null image.

See also isNull().

QImage::QImage ( const QSize & size, Format format )

Constructs an image with the given size and format.

A null image is returned if memory cannot be allocated.

Warning: This will create a QImage with uninitialized data. Call fill() to fill the image with an appropriate pixel value before drawing onto it with QPainter.

QImage::QImage ( int width, int height, Format format )

Constructs an image with the given width, height and format.

A null image will be returned if memory cannot be allocated.

Warning: This will create a QImage with uninitialized data. Call fill() to fill the image with an appropriate pixel value before drawing onto it with QPainter.

QImage::QImage ( uchar * data, int width, int height, Format format )

Constructs an image with the given width, height and format, that uses an existing memory buffer, data. The width and height must be specified in pixels, data must be 32-bit aligned, and each scanline of data in the image must also be 32-bit aligned.

The buffer must remain valid throughout the life of the QImage. The image does not delete the buffer at destruction.

If format is an indexed color format, the image color table is initially empty and must be sufficiently expanded with setColorCount() or setColorTable() before the image is used.

QImage::QImage ( const uchar * data, int width, int height, Format format )

Constructs an image with the given width, height and format, that uses an existing read-only memory buffer, data. The width and height must be specified in pixels, data must be 32-bit aligned, and each scanline of data in the image must also be 32-bit aligned.

The buffer must remain valid throughout the life of the QImage and all copies that have not been modified or otherwise detached from the original buffer. The image does not delete the buffer at destruction.

If format is an indexed color format, the image color table is initially empty and must be sufficiently expanded with setColorCount() or setColorTable() before the image is used.

Unlike the similar QImage constructor that takes a non-const data buffer, this version will never alter the contents of the buffer. For example, calling QImage::bits() will return a deep copy of the image, rather than the buffer passed to the constructor. This allows for the efficiency of constructing a QImage from raw data, without the possibility of the raw data being changed.

QImage::QImage ( uchar * data, int width, int height, int bytesPerLine, Format format )

Constructs an image with the given width, height and format, that uses an existing memory buffer, data. The width and height must be specified in pixels. bytesPerLine specifies the number of bytes per line (stride).

The buffer must remain valid throughout the life of the QImage. The image does not delete the buffer at destruction.

If format is an indexed color format, the image color table is initially empty and must be sufficiently expanded with setColorCount() or setColorTable() before the image is used.

QImage::QImage ( const uchar * data, int width, int height, int bytesPerLine, Format format )

Constructs an image with the given width, height and format, that uses an existing memory buffer, data. The width and height must be specified in pixels. bytesPerLine specifies the number of bytes per line (stride).

The buffer must remain valid throughout the life of the QImage. The image does not delete the buffer at destruction.

If format is an indexed color format, the image color table is initially empty and must be sufficiently expanded with setColorCount() or setColorTable() before the image is used.

Unlike the similar QImage constructor that takes a non-const data buffer, this version will never alter the contents of the buffer. For example, calling QImage::bits() will return a deep copy of the image, rather than the buffer passed to the constructor. This allows for the efficiency of constructing a QImage from raw data, without the possibility of the raw data being changed.

QImage::QImage ( const char * const[] xpm )

Constructs an image from the given xpm image.

Make sure that the image is a valid XPM image. Errors are silently ignored.

Note that it's possible to squeeze the XPM variable a little bit by using an unusual declaration:

 static const char * const start_xpm[] = {
     "16 15 8 1",
     "a c #cec6bd",
 ....

The extra const makes the entire definition read-only, which is slightly more efficient (e.g., when the code is in a shared library) and able to be stored in ROM with the application.

QImage::QImage ( const QString & fileName, const char * format = 0 )

Constructs an image and tries to load the image from the file with the given fileName.

The loader attempts to read the image using the specified format. If the format is not specified (which is the default), the loader probes the file for a header to guess the file format.

If the loading of the image failed, this object is a null image.

The file name can either refer to an actual file on disk or to one of the application's embedded resources. See the Resource System overview for details on how to embed images and other resource files in the application's executable.

See also isNull() and Reading and Writing Image Files.

QImage::QImage ( const char * fileName, const char * format = 0 )

Constructs an image and tries to load the image from the file with the given fileName.

The loader attempts to read the image using the specified format. If the format is not specified (which is the default), the loader probes the file for a header to guess the file format.

If the loading of the image failed, this object is a null image.

The file name can either refer to an actual file on disk or to one of the application's embedded resources. See the Resource System overview for details on how to embed images and other resource files in the application's executable.

You can disable this constructor by defining QT_NO_CAST_FROM_ASCII when you compile your applications. This can be useful, for example, if you want to ensure that all user-visible strings go through QObject::tr().

See also QString::fromAscii(), isNull(), and Reading and Writing Image Files.

QImage::QImage ( const QImage & image )

Constructs a shallow copy of the given image.

For more information about shallow copies, see the Implicit Data Sharing documentation.

See also copy().

QImage::~QImage ()

Destroys the image and cleans up.

bool QImage::allGray () const

Returns true if all the colors in the image are shades of gray (i.e. their red, green and blue components are equal); otherwise false.

Note that this function is slow for images without color table.

See also isGrayscale().

int QImage::bitPlaneCount () const

Returns the number of bit planes in the image.

The number of bit planes is the number of bits of color and transparency information for each pixel. This is different from (i.e. smaller than) the depth when the image format contains unused bits.

This function was introduced in Qt 4.7.

See also depth(), format(), and Image Formats.

uchar * QImage::bits ()

Returns a pointer to the first pixel data. This is equivalent to scanLine(0).

Note that QImage uses implicit data sharing. This function performs a deep copy of the shared pixel data, thus ensuring that this QImage is the only one using the current return value.

See also scanLine(), byteCount(), and constBits().

const uchar * QImage::bits () const

This is an overloaded function.

Note that QImage uses implicit data sharing, but this function does not perform a deep copy of the shared pixel data, because the returned data is const.

int QImage::byteCount () const

Returns the number of bytes occupied by the image data.

This function was introduced in Qt 4.6.

See also bytesPerLine(), bits(), and Image Information.

int QImage::bytesPerLine () const

Returns the number of bytes per image scanline.

This is equivalent to byteCount() / height().

See also scanLine().

qint64 QImage::cacheKey () const

Returns a number that identifies the contents of this QImage object. Distinct QImage objects can only have the same key if they refer to the same contents.

The key will change when the image is altered.

QRgb QImage::color ( int i ) const

Returns the color in the color table at index i. The first color is at index 0.

The colors in an image's color table are specified as ARGB quadruplets (QRgb). Use the qAlpha(), qRed(), qGreen(), and qBlue() functions to get the color value components.

See also setColor(), pixelIndex(), and Pixel Manipulation.

int QImage::colorCount () const

Returns the size of the color table for the image.

Notice that colorCount() returns 0 for 32-bpp images because these images do not use color tables, but instead encode pixel values as ARGB quadruplets.

This function was introduced in Qt 4.6.

See also setColorCount() and Image Information.

QVector<QRgb> QImage::colorTable () const

Returns a list of the colors contained in the image's color table, or an empty list if the image does not have a color table

See also setColorTable(), colorCount(), and color().

const uchar * QImage::constBits () const

Returns a pointer to the first pixel data.

Note that QImage uses implicit data sharing, but this function does not perform a deep copy of the shared pixel data, because the returned data is const.

This function was introduced in Qt 4.7.

See also bits() and constScanLine().

const uchar * QImage::constScanLine ( int i ) const

Returns a pointer to the pixel data at the scanline with index i. The first scanline is at index 0.

The scanline data is aligned on a 32-bit boundary.

Note that QImage uses implicit data sharing, but this function does not perform a deep copy of the shared pixel data, because the returned data is const.

This function was introduced in Qt 4.7.

See also scanLine() and constBits().

QImage QImage::convertToFormat ( Format format, Qt::ImageConversionFlags flags = Qt::AutoColor ) const

Returns a copy of the image in the given format.

The specified image conversion flags control how the image data is handled during the conversion process.

See also Image Format.

QImage QImage::convertToFormat ( Format format, const QVector<QRgb> & colorTable, Qt::ImageConversionFlags flags = Qt::AutoColor ) const

This is an overloaded function.

Returns a copy of the image converted to the given format, using the specified colorTable.

Conversion from 32 bit to 8 bit indexed is a slow operation and will use a straightforward nearest color approach, with no dithering.

QImage QImage::copy ( const QRect & rectangle = QRect() ) const

Returns a sub-area of the image as a new image.

The returned image is copied from the position (rectangle.x(), rectangle.y()) in this image, and will always have the size of the given rectangle.

In areas beyond this image, pixels are set to 0. For 32-bit RGB images, this means black; for 32-bit ARGB images, this means transparent black; for 8-bit images, this means the color with index 0 in the color table which can be anything; for 1-bit images, this means Qt::color0.

If the given rectangle is a null rectangle the entire image is copied.

See also QImage().

QImage QImage::copy ( int x, int y, int width, int height ) const

This is an overloaded function.

The returned image is copied from the position (x, y) in this image, and will always have the given width and height. In areas beyond this image, pixels are set to 0.

QImage QImage::createAlphaMask ( Qt::ImageConversionFlags flags = Qt::AutoColor ) const

Builds and returns a 1-bpp mask from the alpha buffer in this image. Returns a null image if the image's format is QImage::Format_RGB32.

The flags argument is a bitwise-OR of the Qt::ImageConversionFlags, and controls the conversion process. Passing 0 for flags sets all the default options.

The returned image has little-endian bit order (i.e. the image's format is QImage::Format_MonoLSB), which you can convert to big-endian (QImage::Format_Mono) using the convertToFormat() function.

See also createHeuristicMask() and Image Transformations.

QImage QImage::createHeuristicMask ( bool clipTight = true ) const

Creates and returns a 1-bpp heuristic mask for this image.

The function works by selecting a color from one of the corners, then chipping away pixels of that color starting at all the edges. The four corners vote for which color is to be masked away. In case of a draw (this generally means that this function is not applicable to the image), the result is arbitrary.

The returned image has little-endian bit order (i.e. the image's format is QImage::Format_MonoLSB), which you can convert to big-endian (QImage::Format_Mono) using the convertToFormat() function.

If clipTight is true (the default) the mask is just large enough to cover the pixels; otherwise, the mask is larger than the data pixels.

Note that this function disregards the alpha buffer.

See also createAlphaMask() and Image Transformations.

QImage QImage::createMaskFromColor ( QRgb color, Qt::MaskMode mode = Qt::MaskInColor ) const

Creates and returns a mask for this image based on the given color value. If the mode is MaskInColor (the default value), all pixels matching color will be opaque pixels in the mask. If mode is MaskOutColor, all pixels matching the given color will be transparent.

See also createAlphaMask() and createHeuristicMask().

int QImage::depth () const

Returns the depth of the image.

The image depth is the number of bits used to store a single pixel, also called bits per pixel (bpp).

The supported depths are 1, 8, 16, 24 and 32.

See also bitPlaneCount(), convertToFormat(), Image Formats, and Image Information.

int QImage::dotsPerMeterX () const

Returns the number of pixels that fit horizontally in a physical meter. Together with dotsPerMeterY(), this number defines the intended scale and aspect ratio of the image.

See also setDotsPerMeterX() and Image Information.

int QImage::dotsPerMeterY () const

Returns the number of pixels that fit vertically in a physical meter. Together with dotsPerMeterX(), this number defines the intended scale and aspect ratio of the image.

See also setDotsPerMeterY() and Image Information.

void QImage::fill ( uint pixelValue )

Fills the entire image with the given pixelValue.

If the depth of this image is 1, only the lowest bit is used. If you say fill(0), fill(2), etc., the image is filled with 0s. If you say fill(1), fill(3), etc., the image is filled with 1s. If the depth is 8, the lowest 8 bits are used and if the depth is 16 the lowest 16 bits are used.

Note: QImage::pixel() returns the color of the pixel at the given coordinates while QColor::pixel() returns the pixel value of the underlying window system (essentially an index value), so normally you will want to use QImage::pixel() to use a color from an existing image or QColor::rgb() to use a specific color.

See also depth() and Image Transformations.

Format QImage::format () const

Returns the format of the image.

See also Image Formats.

QImage QImage::fromData ( const uchar * data, int size, const char * format = 0 ) [static]

Constructs a QImage from the first size bytes of the given binary data. The loader attempts to read the image using the specified format. If format is not specified (which is the default), the loader probes the file for a header to guess the file format. binary data. The loader attempts to read the image, either using the optional image format specified or by determining the image format from the data.

If format is not specified (which is the default), the loader probes the file for a header to determine the file format. If format is specified, it must be one of the values returned by QImageReader::supportedImageFormats().

If the loading of the image fails, the image returned will be a null image.

See also load(), save(), and Reading and Writing Image Files.

QImage QImage::fromData ( const QByteArray & data, const char * format = 0 ) [static]

This is an overloaded function.

Loads an image from the given QByteArray data.

bool QImage::hasAlphaChannel () const

Returns true if the image has a format that respects the alpha channel, otherwise returns false.

See also Image Information.

int QImage::height () const

Returns the height of the image.

See also Image Information.

void QImage::invertPixels ( InvertMode mode = InvertRgb )

Inverts all pixel values in the image.

The given invert mode only have a meaning when the image's depth is 32. The default mode is InvertRgb, which leaves the alpha channel unchanged. If the mode is InvertRgba, the alpha bits are also inverted.

Inverting an 8-bit image means to replace all pixels using color index i with a pixel using color index 255 minus i. The same is the case for a 1-bit image. Note that the color table is not changed.

See also Image Transformations.

bool QImage::isGrayscale () const

For 32-bit images, this function is equivalent to allGray().

For 8-bpp images, this function returns true if color(i) is QRgb(i, i, i) for all indexes of the color table; otherwise returns false.

See also allGray() and Image Formats.

bool QImage::isNull () const

Returns true if it is a null image, otherwise returns false.

A null image has all parameters set to zero and no allocated data.

bool QImage::load ( const QString & fileName, const char * format = 0 )

Loads an image from the file with the given fileName. Returns true if the image was successfully loaded; otherwise returns false.

The loader attempts to read the image using the specified format, e.g., PNG or JPG. If format is not specified (which is the default), the loader probes the file for a header to guess the file format.

The file name can either refer to an actual file on disk or to one of the application's embedded resources. See the Resource System overview for details on how to embed images and other resource files in the application's executable.

See also Reading and Writing Image Files.

bool QImage::load ( QIODevice * device, const char * format )

This is an overloaded function.

This function reads a QImage from the given device. This can, for example, be used to load an image directly into a QByteArray.

bool QImage::loadFromData ( const uchar * data, int len, const char * format = 0 )

Loads an image from the first len bytes of the given binary data. Returns true if the image was successfully loaded; otherwise returns false.

The loader attempts to read the image using the specified format, e.g., PNG or JPG. If format is not specified (which is the default), the loader probes the file for a header to guess the file format.

See also Reading and Writing Image Files.

bool QImage::loadFromData ( const QByteArray & data, const char * format = 0 )

This is an overloaded function.

Loads an image from the given QByteArray data.

QImage QImage::mirrored ( bool horizontal = false, bool vertical = true ) const

Returns a mirror of the image, mirrored in the horizontal and/or the vertical direction depending on whether horizontal and vertical are set to true or false.

Note that the original image is not changed.

See also Image Transformations.

QPoint QImage::offset () const

Returns the number of pixels by which the image is intended to be offset by when positioning relative to other images.

See also setOffset() and Image Information.

QRgb QImage::pixel ( const QPoint & position ) const

Returns the color of the pixel at the given position.

If the position is not valid, the results are undefined.

Warning: This function is expensive when used for massive pixel manipulations.

See also setPixel(), valid(), and Pixel Manipulation.

QRgb QImage::pixel ( int x, int y ) const

This is an overloaded function.

Returns the color of the pixel at coordinates (x, y).

int QImage::pixelIndex ( const QPoint & position ) const

Returns the pixel index at the given position.

If position is not valid, or if the image is not a paletted image (depth() > 8), the results are undefined.

See also valid(), depth(), and Pixel Manipulation.

int QImage::pixelIndex ( int x, int y ) const

This is an overloaded function.

Returns the pixel index at (x, y).

QRect QImage::rect () const

Returns the enclosing rectangle (0, 0, width(), height()) of the image.

See also Image Information.

QImage QImage::rgbSwapped () const

Returns a QImage in which the values of the red and blue components of all pixels have been swapped, effectively converting an RGB image to an BGR image.

The original QImage is not changed.

See also Image Transformations.

bool QImage::save ( const QString & fileName, const char * format = 0, int quality = -1 ) const

Saves the image to the file with the given fileName, using the given image file format and quality factor. If format is 0, QImage will attempt to guess the format by looking at fileName's suffix.

The quality factor must be in the range 0 to 100 or -1. Specify 0 to obtain small compressed files, 100 for large uncompressed files, and -1 (the default) to use the default settings.

Returns true if the image was successfully saved; otherwise returns false.

See also Reading and Writing Image Files.

bool QImage::save ( QIODevice * device, const char * format = 0, int quality = -1 ) const

This is an overloaded function.

This function writes a QImage to the given device.

This can, for example, be used to save an image directly into a QByteArray:

         QImage image;
         QByteArray ba;
         QBuffer buffer(&ba);
         buffer.open(QIODevice::WriteOnly);
         image.save(&buffer, "PNG"); // writes image into ba in PNG format

QImage QImage::scaled ( const QSize & size, Qt::AspectRatioMode aspectRatioMode = Qt::IgnoreAspectRatio, Qt::TransformationMode transformMode = Qt::FastTransformation ) const

Returns a copy of the image scaled to a rectangle defined by the given size according to the given aspectRatioMode and transformMode.

• If aspectRatioMode is Qt::IgnoreAspectRatio, the image is scaled to size.
• If aspectRatioMode is Qt::KeepAspectRatio, the image is scaled to a rectangle as large as possible inside size, preserving the aspect ratio.
• If aspectRatioMode is Qt::KeepAspectRatioByExpanding, the image is scaled to a rectangle as small as possible outside size, preserving the aspect ratio.

If the given size is empty, this function returns a null image.

See also isNull() and Image Transformations.

QImage QImage::scaled ( int width, int height, Qt::AspectRatioMode aspectRatioMode = Qt::IgnoreAspectRatio, Qt::TransformationMode transformMode = Qt::FastTransformation ) const

This is an overloaded function.

Returns a copy of the image scaled to a rectangle with the given width and height according to the given aspectRatioMode and transformMode.

If either the width or the height is zero or negative, this function returns a null image.

QImage QImage::scaledToHeight ( int height, Qt::TransformationMode mode = Qt::FastTransformation ) const

Returns a scaled copy of the image. The returned image is scaled to the given height using the specified transformation mode.

This function automatically calculates the width of the image so that the ratio of the image is preserved.

If the given height is 0 or negative, a null image is returned.

See also Image Transformations.

QImage QImage::scaledToWidth ( int width, Qt::TransformationMode mode = Qt::FastTransformation ) const

Returns a scaled copy of the image. The returned image is scaled to the given width using the specified transformation mode.

This function automatically calculates the height of the image so that its aspect ratio is preserved.

If the given width is 0 or negative, a null image is returned.

See also Image Transformations.

uchar * QImage::scanLine ( int i )

Returns a pointer to the pixel data at the scanline with index i. The first scanline is at index 0.

The scanline data is aligned on a 32-bit boundary.

Warning: If you are accessing 32-bpp image data, cast the returned pointer to QRgb* (QRgb has a 32-bit size) and use it to read/write the pixel value. You cannot use the uchar* pointer directly, because the pixel format depends on the byte order on the underlying platform. Use qRed(), qGreen(), qBlue(), and qAlpha() to access the pixels.

See also bytesPerLine(), bits(), Pixel Manipulation, and constScanLine().

const uchar * QImage::scanLine ( int i ) const

This is an overloaded function.

void QImage::setColor ( int index, QRgb colorValue )

Sets the color at the given index in the color table, to the given to colorValue. The color value is an ARGB quadruplet.

If index is outside the current size of the color table, it is expanded with setColorCount().

See also color(), colorCount(), setColorTable(), and Pixel Manipulation.

void QImage::setColorCount ( int colorCount )

Resizes the color table to contain colorCount entries.

If the color table is expanded, all the extra colors will be set to transparent (i.e qRgba(0, 0, 0, 0)).

When the image is used, the color table must be large enough to have entries for all the pixel/index values present in the image, otherwise the results are undefined.

This function was introduced in Qt 4.6.

See also colorCount(), colorTable(), setColor(), and Image Transformations.

void QImage::setColorTable ( const QVector<QRgb> colors )

Sets the color table used to translate color indexes to QRgb values, to the specified colors.

When the image is used, the color table must be large enough to have entries for all the pixel/index values present in the image, otherwise the results are undefined.

See also colorTable(), setColor(), and Image Transformations.

void QImage::setDotsPerMeterX ( int x )

Sets the number of pixels that fit horizontally in a physical meter, to x.

Together with dotsPerMeterY(), this number defines the intended scale and aspect ratio of the image, and determines the scale at which QPainter will draw graphics on the image. It does not change the scale or aspect ratio of the image when it is rendered on other paint devices.

See also dotsPerMeterX() and Image Information.

void QImage::setDotsPerMeterY ( int y )

Sets the number of pixels that fit vertically in a physical meter, to y.

Together with dotsPerMeterX(), this number defines the intended scale and aspect ratio of the image, and determines the scale at which QPainter will draw graphics on the image. It does not change the scale or aspect ratio of the image when it is rendered on other paint devices.

See also dotsPerMeterY() and Image Information.

void QImage::setOffset ( const QPoint & offset )

Sets the number of pixels by which the image is intended to be offset by when positioning relative to other images, to offset.

See also offset() and Image Information.

void QImage::setPixel ( const QPoint & position, uint index_or_rgb )

Sets the pixel index or color at the given position to index_or_rgb.

If the image's format is either monochrome or 8-bit, the given index_or_rgb value must be an index in the image's color table, otherwise the parameter must be a QRgb value.

If position is not a valid coordinate pair in the image, or if index_or_rgb >= colorCount() in the case of monochrome and 8-bit images, the result is undefined.

Warning: This function is expensive due to the call of the internal detach() function called within; if performance is a concern, we recommend the use of scanLine() to access pixel data directly.

See also pixel() and Pixel Manipulation.

void QImage::setPixel ( int x, int y, uint index_or_rgb )

This is an overloaded function.

Sets the pixel index or color at (x, y) to index_or_rgb.

void QImage::setText ( const QString & key, const QString & text )

Sets the image text to the given text and associate it with the given key.

If you just want to store a single text block (i.e., a "comment" or just a description), you can either pass an empty key, or use a generic key like "Description".

The image text is embedded into the image data when you call save() or QImageWriter::write().

Not all image formats support embedded text. You can find out if a specific image or format supports embedding text by using QImageWriter::supportsOption(). We give an example:

         QImageWriter writer;
         writer.setFormat("png");
         if (writer.supportsOption(QImageIOHandler::Description))
             qDebug() << "Png supports embedded text";

You can use QImageWriter::supportedImageFormats() to find out which image formats are available to you.

See also text() and textKeys().

QSize QImage::size () const

Returns the size of the image, i.e. its width() and height().

See also Image Information.

QString QImage::text ( const QString & key = QString() ) const

Returns the image text associated with the given key. If the specified key is an empty string, the whole image text is returned, with each key-text pair separated by a newline.

See also setText() and textKeys().

QStringList QImage::textKeys () const

Returns the text keys for this image.

You can use these keys with text() to list the image text for a certain key.

See also text().

QImage QImage::transformed ( const QMatrix & matrix, Qt::TransformationMode mode = Qt::FastTransformation ) const

Returns a copy of the image that is transformed using the given transformation matrix and transformation mode.

The transformation matrix is internally adjusted to compensate for unwanted translation; i.e. the image produced is the smallest image that contains all the transformed points of the original image. Use the trueMatrix() function to retrieve the actual matrix used for transforming an image.

See also trueMatrix() and Image Transformations.

QImage QImage::transformed ( const QTransform & matrix, Qt::TransformationMode mode = Qt::FastTransformation ) const

Returns a copy of the image that is transformed using the given transformation matrix and transformation mode.

The transformation matrix is internally adjusted to compensate for unwanted translation; i.e. the image produced is the smallest image that contains all the transformed points of the original image. Use the trueMatrix() function to retrieve the actual matrix used for transforming an image.

Unlike the other overload, this function can be used to perform perspective transformations on images.

See also trueMatrix() and Image Transformations.

QMatrix QImage::trueMatrix ( const QMatrix & matrix, int width, int height ) [static]

Returns the actual matrix used for transforming an image with the given width, height and matrix.

When transforming an image using the transformed() function, the transformation matrix is internally adjusted to compensate for unwanted translation, i.e. transformed() returns the smallest image containing all transformed points of the original image. This function returns the modified matrix, which maps points correctly from the original image into the new image.

See also transformed() and Image Transformations.

QTransform QImage::trueMatrix ( const QTransform & matrix, int width, int height ) [static]

Returns the actual matrix used for transforming an image with the given width, height and matrix.

When transforming an image using the transformed() function, the transformation matrix is internally adjusted to compensate for unwanted translation, i.e. transformed() returns the smallest image containing all transformed points of the original image. This function returns the modified matrix, which maps points correctly from the original image into the new image.

Unlike the other overload, this function creates transformation matrices that can be used to perform perspective transformations on images.

See also transformed() and Image Transformations.

bool QImage::valid ( const QPoint & pos ) const

Returns true if pos is a valid coordinate pair within the image; otherwise returns false.

See also rect() and QRect::contains().

bool QImage::valid ( int x, int y ) const

This is an overloaded function.

Returns true if QPoint(x, y) is a valid coordinate pair within the image; otherwise returns false.

int QImage::width () const

Returns the width of the image.

See also Image Information.

QImage::operator QVariant () const

Returns the image as a QVariant.

bool QImage::operator!= ( const QImage & image ) const

Returns true if this image and the given image have different contents; otherwise returns false.

The comparison can be slow, unless there is some obvious difference, such as different widths, in which case the function will return quickly.

See also operator=().

QImage & QImage::operator= ( const QImage & image )

Assigns a shallow copy of the given image to this image and returns a reference to this image.

For more information about shallow copies, see the Implicit Data Sharing documentation.

See also copy() and QImage().

bool QImage::operator== ( const QImage & image ) const

Returns true if this image and the given image have the same contents; otherwise returns false.

The comparison can be slow, unless there is some obvious difference (e.g. different size or format), in which case the function will return quickly.

See also operator=().
