Qt for X11 Requirements

QtGui Dependencies

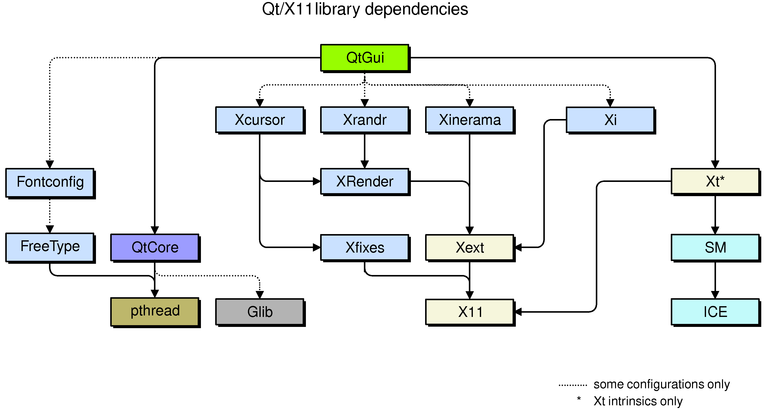

Qt for X11 Dependencies

The QtGui module and the QtCore module, which provides the non-GUI features required by QtGui, depend on the libraries described in the following table. To build Qt from its source code, you will also need to install the development packages for these libraries for your system.

Name Library Notes Configuration options Minimum working version
XRender libXrender X Rendering Extension; used for anti-aliasing -xrender or auto-detected 0.9.0
Xrandr libXrandr X Resize and Rotate Extension -xrandr or auto-detected 1.0.2
Xcursor libXcursor X Cursor Extension -xcursor or auto-detected 1.1.4
Xfixes libXfixes X Fixes Extension -xfixes or auto-detected 3.0.0
Xinerama libXinerama Multi-head support -xinerama or auto-detected 1.1.0
Fontconfig libfontconfig Font customization and configuration -fontconfig or auto-detected 2.1
FreeType libfreetype Font engine 2.1.3
Xi libXi X11 Input Extensions -xinput or auto-detected 1.3.0
Xt libXt Xt Intrinsics 0.99
Xext libXext X Extensions 6.4.3
X11 libX11 X11 Client-Side Library 6.2.1
SM libSM X Session Management -sm or auto-detected 6.0.4
ICE libICE Inter-Client Exchange -sm or auto-detected 6.3.5
glib libglib-2.0 Common event loop handling -glib or auto-detected 2.8.3
pthread libpthread Multithreading 2.3.5

Note: You must compile with XRender support to get alpha transparency support for pixmaps and images.

Development packages for these libraries contain header files that are used when building Qt from its source code. On Debian-based GNU/Linux systems, for example, we recommend that you install the following development packages:

  • libfontconfig1-dev
  • libfreetype6-dev
  • libx11-dev
  • libxcursor-dev
  • libxext-dev
  • libxfixes-dev
  • libxft-dev
  • libxi-dev
  • libxrandr-dev
  • libxrender-dev

Some of these packages depend on others in this list, so installing one may cause others to be automatically installed. Other distributions may provide system packages with similar names.

OpenGL Dependencies

The configure script will autodetect if OpenGL headers and libraries are installed on your system, and if so, it will include the QtOpenGL module in the Qt library.

If your OpenGL headers or libraries are placed in a non-standard directory, you may need to change the QMAKE_INCDIR_OPENGL and/or QMAKE_LIBDIR_OPENGL in the config file for your system.

The QGL documentation assumes that you are familiar with OpenGL programming. If you're new to the subject a good starting point is http://www.opengl.org/.

Phonon Dependencies

As described in the Phonon Overview, Phonon uses the GStreamer multimedia framework as the backend for audio and video playback on X11. The minimum required version of GStreamer is 0.10.

To build Phonon, you need the GStreamer library, base plugins, and development files for your system. The package names for GStreamer vary between Linux distributions; try searching for gstreamer or libgstreamer in your distribution's package repository to find suitable packages.

See also Known Issues.
