Qt Designer fully supports the Qt Resource System, enabling resources to be specified together with forms as they are designed. To aid designers and developers manage resources for their applications, Qt Designer's resource editor allows resources to be defined on a per-form basis. In other words, each form can have a separate resource file.

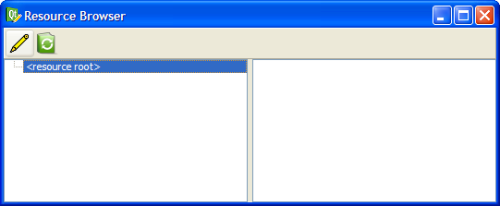

To specify a resource file you must enable the resource editor by opening the Tools menu, and switching on the Resource Browser option.
Resource Files

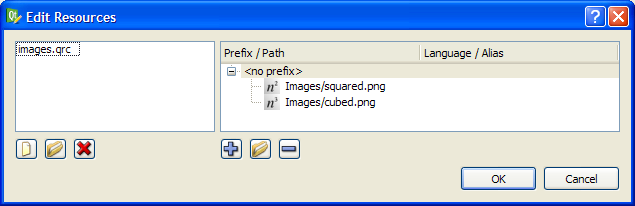

Within the resource browser, you can open existing resource files or create new ones. Click the Edit Resources button to edit your resources. To reload resources, click on the Reload button . |
Once a resource file is loaded, you can create or remove entries in it using the given Add Files and Remove Files buttons, and specify resources (e.g., images) using the Add Files button . Note that these resources must reside within the current resource file's directory or one of its subdirectories.
Editing Resource Files

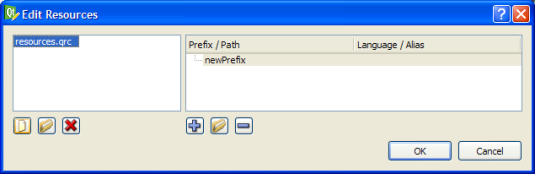

Press the button to add a new resource entry to the file. Then use the Add Files button to specify the resource. You can remove resources by selecting the corresponding entry in the resource editor, and pressing the button. |
Once the resources are defined you can use them actively when composing your form. For example, you might want to create a tool button using an icon specified in the resource file.
Using Resources
When changing properties with values that may be defined within a resource file, Qt Designer's property editor allows you to specify a resource in addition to the option of selecting a source file in the ordinary way. |
|
Selecting a Resource

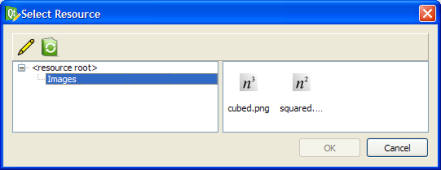

You can open the resource selector by clicking Choose Resource... to add resources any time during the design process. |
